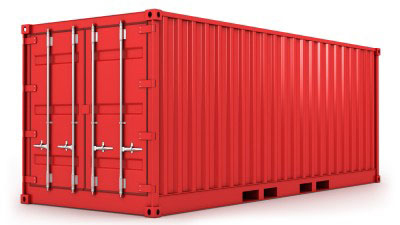

20 Box overview- GENERAL PURPOSE 20'x8'x8'6"

These general specifications for customer's reference only. Before picking up requested containers, please contact your local office in order to confirm required specification. Please always refer to the container right door for actual specifications.

Internal (mm)	Weight & Payload	Ventilation
Length:5,898	Tare Weight:2,185	No. Of Ventilators:2
Width:2,352	Max Payload:28,295
Height:2,393	Max Gross Weight:30,480
DOW:2,343
DOH:2,280
Cubic Capacity:33.2

Note [ DOW- Door Opening Width & DOH- Door Opening Height ]

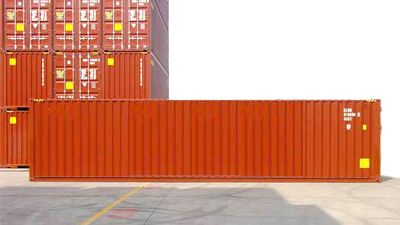

HIGH CUBE (DRY)

40 Box HC overview - 40'x8'x9'6"

These general specifications for customers' reference only. Before picking up requested containers, please contact your local office in order to confirm required specification. Please always refer to the container right door for actual specifications.

Internal (mm)	Weight & Payload	Ventilation
Length:12,032	Tare Weight:3,890	No. Of Ventilators:2
Width:2,352	Max Payload:26,590
Height:2,698	Max Gross Weight:30,480
DOW:2,340
DOH:2,585
Cubic Capacity:76.4

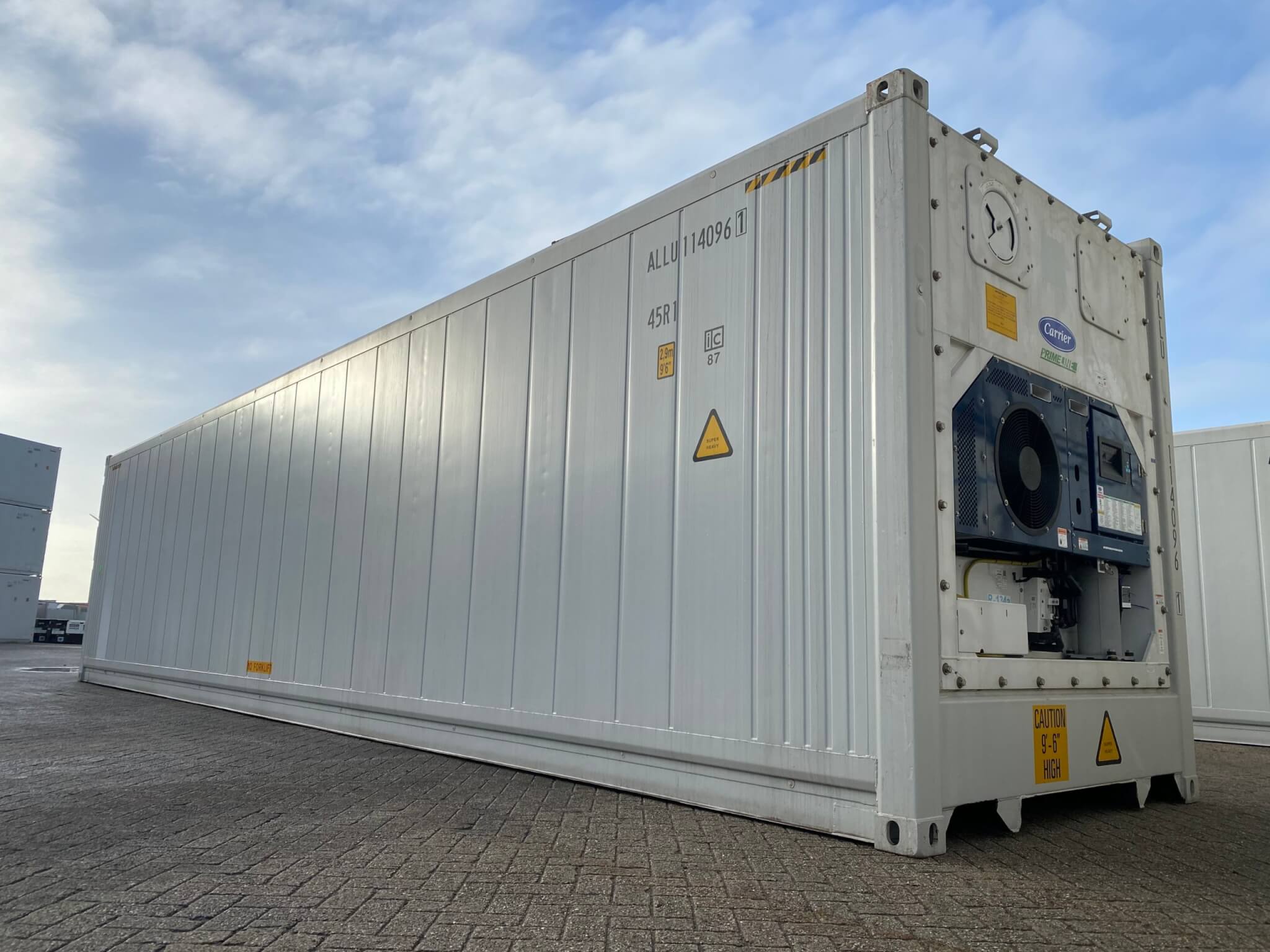

REEFER

40 Box HC overview - 40'x8'x9'6"

These general specifications for customers' reference only. Before picking up requested containers, please contact your local office in order to confirm required specification. Please always refer to the container right door for actual specifications.

Internal (mm)	Weight & Payload	Ventilation
Length:12,032	Tare Weight:3,890	No. Of Ventilators:2
Width:2,352	Max Payload:26,590
Height:2,698	Max Gross Weight:30,480
DOW:2,340
DOH:2,585
Cubic Capacity:76.4

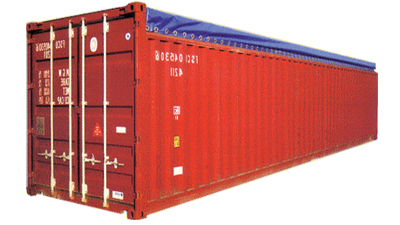

OPEN TOP

20 Box Open Top and 40 Box Open Top overview - 20'x8'x2'6" and 40'x8'x8'6"

These general specifications for customers' reference only. Before picking up requested containers, please contact your local office in order to confirm required specification. Please always refer to the container right door for actual specifications.

Open Top- 20

Internal (mm)	Weight & Payload
Length:5,902	Tare Weight:2,300
Width:2,352	Max Payload:28,180
Height:2,348	Max Gross Weight:30,480
DOW:2,340
DOH:2,280
Cubic Capacity:32.5

Open Top- 40

Internal (mm)	Weight & Payload
Length:12,032	Tare Weight:3,800
Width:2,352	Max Payload:26,680
Height:2,348	Max Gross Weight:30,480
DOW:2,340
DOH:2,280
Cubic Capacity:65.9

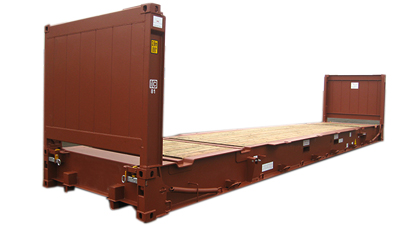

FLAT TRACK

These general specifications for customers' reference only. Before picking up requested containers, please contact your local office in order to confirm required specification. Please always refer to the container right door for actual specifications.

Flat Track- 20

Internal (mm)	Weight & Payload
Length (b/w end panels ):6,038	Tare Weight:2,750
Length (b/w corner posts):5,612	Max Payload:31,250
Length (b/w hinges at floor level):5,552	Max Gross Weight:34,000
Width (Over bottom side rail):2,210
Width (b/w corner posts):2,227
Height ( side rail adjacent to post to top casting ): 2213

Flat Track- 40

Internal (mm)	Weight & Payload
Length (b/w end panels ):12,172	Tare Weight:5,100
Length (b/w corner posts):11,652	Max Payload:44,900
Length (b/w hinges at floor level):11,630	Max Gross Weight:50,000
Width (Over bottom side rail):2,374
Width (b/w corner posts):2,212
Height ( side rail adjacent to post to top casting ): 1959
